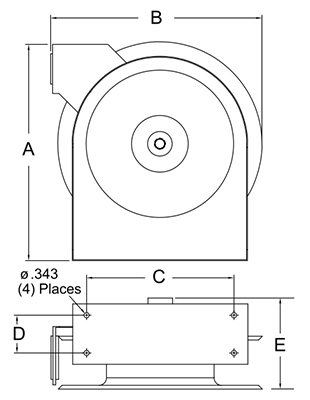

产品尺寸 | |
No. | 1 |
mm | |
A | 368 |
B | 349 |
C | 248 |
D | 64 |
E | 152 |
基座底部四个安装孔径是8.7mm | |
产品尺寸 | ||
No. | 2 | 3 |
mm | mm | |
A | 514 | 514 |
B | 502 | 502 |
C | 198 | 198 |
D | 98 | 98 |
E | 318 | 337 |
座底部四个安装孔径是13.1mm | ||

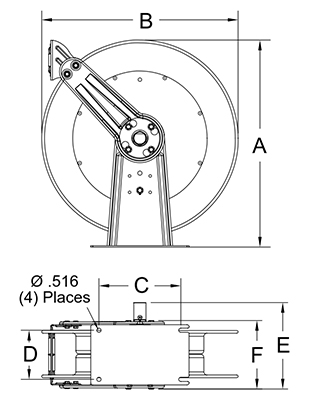

产品尺寸 | |
No. | 4 |
mm | |
A | 645 |
B | 610 |
C | 254 |
D | 152 |
E | 453 |
F | 224 |
型号 | 附件 | 规格 | 线缆长 | 伏特 | 安培 | 总重量 | 尺寸 | 备注 |
mm² | m | V | A | kg | ||||
LB 4140 | 电缆（无插头和插座） | 3×1.5+1×1.0 | 12 | 380 | 10 | 12 | 1 | |
LB4050 153 3C | 电缆、插头、插座 | 3×1.5 | 15 | 220 | 10 | 12 | 1 | |
LB 4000 | 3×1.5 | 15 | 220 | 10 | 10 | 1 | ||
LB 4100 | 3×1.5+1×1.0 | 12 | 380 | 10 | 10 | 1 | ||
LB 4500 | 3×1.5 | 13.5 | 220 | 10 | 10 | 1 | ||
L 70075 | 23 | 220 | 10 | 31 | 2 | |||
L 70100 | 30 | 220 | 10 | 33 | 2 | |||
L 70100 124 | 30 | 600 | 16 | 34 | 2 |
